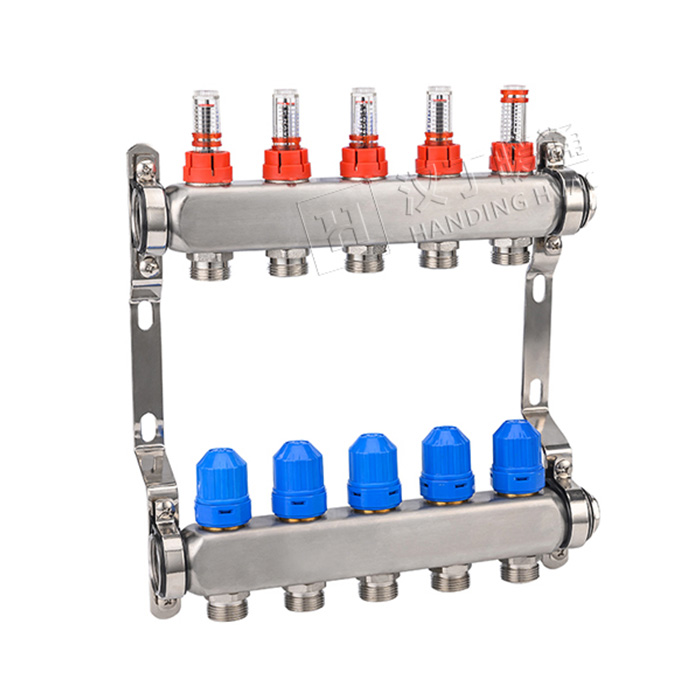

Stainless Steel Underfloor Heating Manifold H2004A

Stainless Steel Underfloor Heating Manifold H2004A is mainly used for water distribution in floor heating system, specially designed for optimal heat distribution in floor heating system.

Request An Inquiry PDF
Product details
analysis

Precision-engineered Stainless Steel Round Pipe Manifold with flat-sealing male threads, low installation depth, and adaptable modular accessories. Compliant with EN1264, it offers a reliable heating solution with a top-supply flowmeter and bottom-return control valve.

Specification

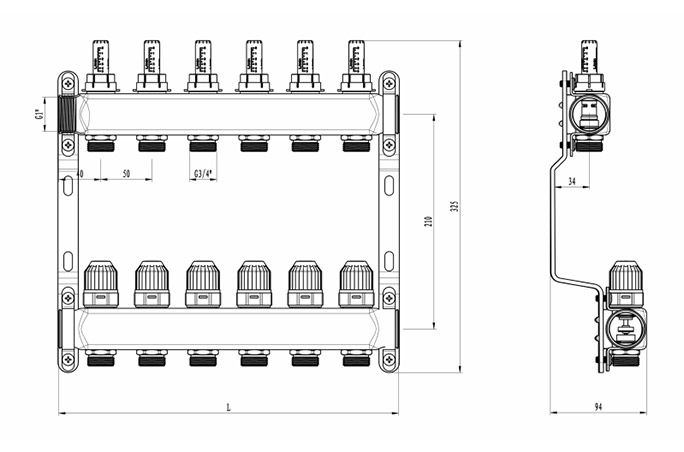

Dimension
Specification Ways L
G1"×3/4" 2 126
G1"×3/4" 3 176
G1"×3/4" 4 226
G1"×3/4" 5 276
G1"×3/4" 6 326
G1"×3/4" 7 376
G1"×3/4" 8 426
G1"×3/4" 9 476
G1"×3/4" 10 526
G1"×3/4" 11 576
G1"×3/4" 12 626



Technical Data

Material

Manifold body

Stainless steel 304

Port connection

Brass

Seal

EPDM

Working Pressure

0-10bar



Working temperature

-10℃ to 70℃



Wokring Media

Water



Flow

1-5L/Min



Flow tolerance

±10%





Test precedure

Sealing test

Make water pressure test under 8-10bar and keep for 1min,to make sure there is no leakage

High temperature test

Test manifold set under temperature 80℃ enviroment,to make sure there is no leakage and cracking

Low temperature test

Test manifold set under temperature -30℃ enviroment,to make sure there is no leakage and cracking

Flow test

make sure the tolerance is  ±10%

flow meter burst pressure test

make burst pressure test under 10Mpa to make sure there is no cracking.

insert valve life test

make 100 thousand time using life test there is no broken

Quality Control
By monitoring and analyzing data in a timely manner, we can better understand the quality status of products and take corresponding measures to improve product quality and consistency.
pro
The quality control of products is a link we care about very much. In order to ensure that each shipment of our customers leaves the factory perfectly, we design and implement a detailed inspection procedure.
pro
HANDING utilizes specific workshops when manufacturing different aspects of our HVAC products. With a strict QC system in each workshop, we ensure the final products provide long-lasting protection.
pro
Provide customers with one-stop procurement solutions, help customers save time and cost, improve procurement efficiency, and ensure that purchased products meet customer requirements and expectations.
Related Products
pro
Durable stainless steel manifold with integrated drain valve for easy maintenance. Ensures efficient and reliable heat distribution.
pro
304 Central Heating Radiator Manifold H2005A designed for optimal performance and durability. Perfect for residential and commercial heating systems.
pro
High-quality 304 stainless steel manifold featuring a convenient drain valve for easy maintenance. Ensures efficient and balanced heating distribution.
pro
2-Port Manifold with Filling Valves H2004B can accurately control and fill the system, and is widely used in fluid control systems, especially in situations where precise control of fluid flow direction and flow rate is required.
