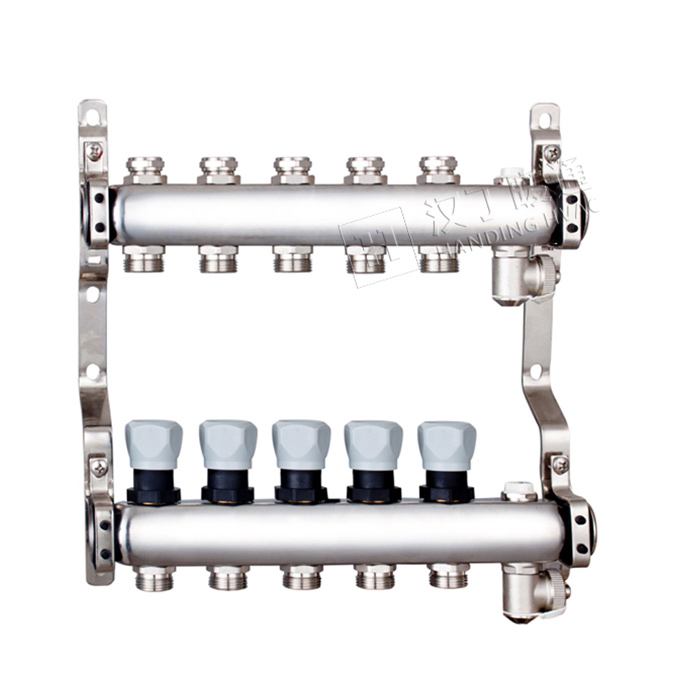

Name: Stainless Steel Heating Manifold with Drain Valve H2005
Brand: HANDING
SKU: 00058
Rating: 4.1 (79 reviews)

Product details

Core advantages: Double innovative design
10-port precision diversion: independent circuit precise temperature control, support multi-zone dynamic adjustment, with constant temperature system to achieve balanced heat distribution, heating efficiency and comfort are improved.
Built-in integrated drain valve: no additional accessories are required, quickly drain the system water, clean the pipes, eliminate the hidden dangers of scale accumulation, and simplify maintenance.
Food grade 304 stainless steel body: high-strength forging, excellent corrosion resistance, calmly deal with complex water quality, extend system life, and reduce full-cycle maintenance costs.
Brass connection port: strengthen anti-corrosion ability, ensure high stability, and adapt to a variety of installation scenarios.All metal parts are anti-aging, no leakage or loss after long-term use, and stable performance remains consistent.

Specification

Dimension
Specification	Ways	L
G1"×3/4"	2	126
G1"×3/4"	3	176
G1"×3/4"	4	226
G1"×3/4"	5	276
G1"×3/4"	6	326
G1"×3/4"	7	376
G1"×3/4"	8	426
G1"×3/4"	9	476
G1"×3/4"	10	526
G1"×3/4"	11	576
G1"×3/4"	12	626

Technical Data
Material	Manifold body	Stainless steel 304
	Port connection	Brass
	Seal	EPDM
Working Pressure	0-10bar
Working temperature	-10℃ to 70℃
Wokring Media	Water
Flow	1-5L/Min
Flow tolerance	±10%

Test precedure
Sealing test	Make water pressure test under 8-10bar and keep for 1min,to make sure there is no leakage
High temperature test	Test manifold set under temperature 80℃ enviroment,to make sure there is no leakage and cracking
Low temperature test	Test manifold set under temperature -30℃ enviroment,to make sure there is no leakage and cracking
Flow test	make sure the tolerance is ±10%
flow meter burst pressure test	make burst pressure test under 10Mpa to make sure there is no cracking.
insert valve life test	make 100 thousand time using life test there is no broken
