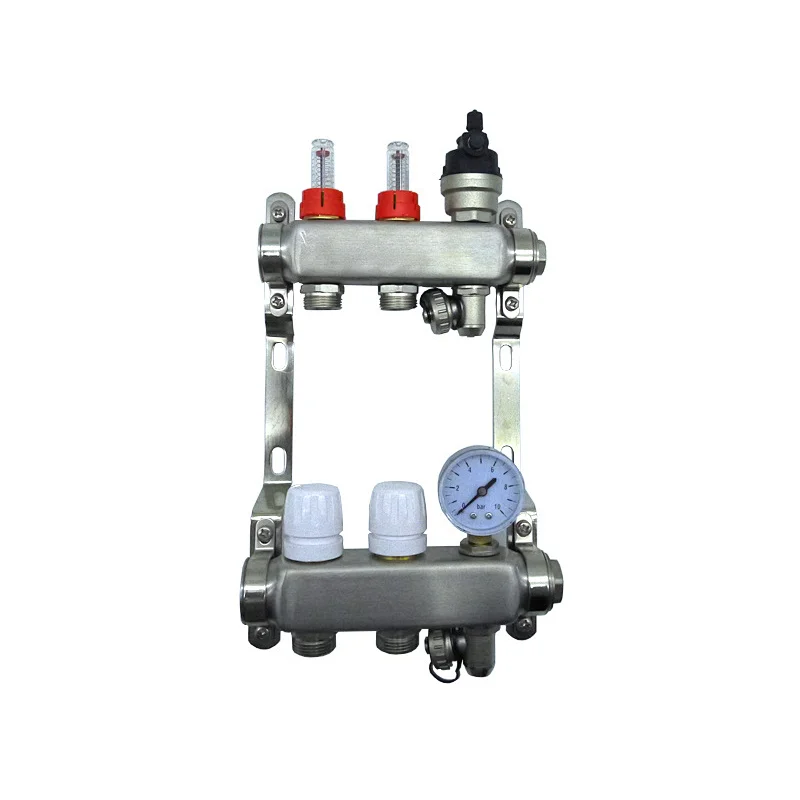

Water manifold
Water manifold

Water manifold

Model NO.
H2004B
Minimum order quantity:
50
Quantity:
  • This manifold is designed for wet underfloor heating applications specifically. The manifold can help you to set different temperatures in different rooms to make your home feel better.


    Features:
    Manifold body Material:Stainless steel 304
    Port connection Material:Brass
    Seal Material:EPDM
    Maximum pressure:10bar
    Flow meter scale:1~5L/Min
    Flow tolerance: +-10%
    Pipe threading:1’’
    Center distance:50mm
    Actuator connection Size:М30х1.5

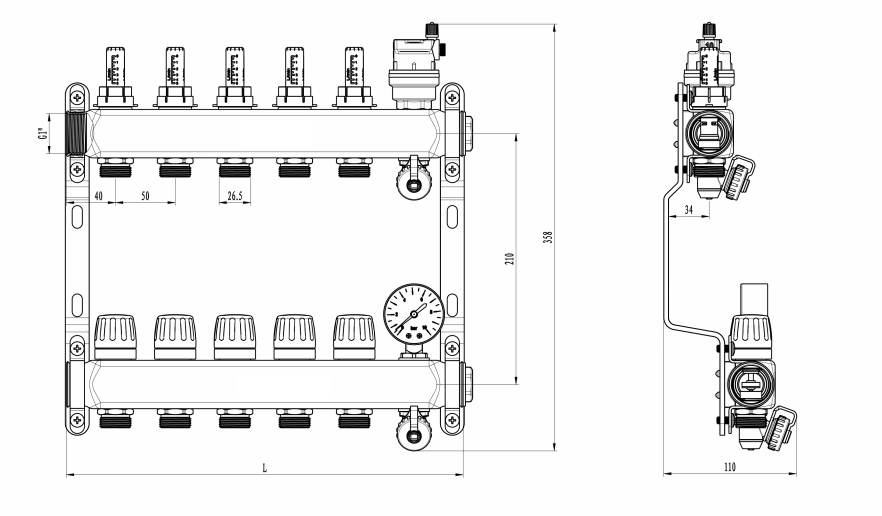

    Specification(mm/in):

    SpecificationLoopsL
    G1''X3/4''2130
    G1''X3/4''3180
    G1''X3/4''4230
    G1''X3/4''5280
    G1''X3/4''6330
    G1''X3/4''7380
    G1''X3/4''8430
    G1''X3/4''9480
    G1''X3/4''10530
    G1''X3/4''11580
    G1''X3/4''12630

















Send Message

* clear input
* clear input
* clear input
* clear input
*
*

Related Products

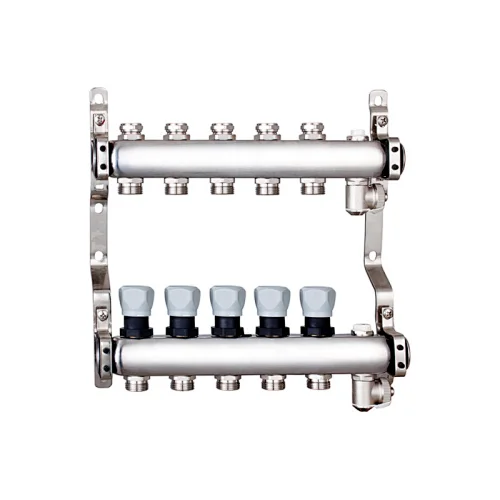

Model NO. H2001

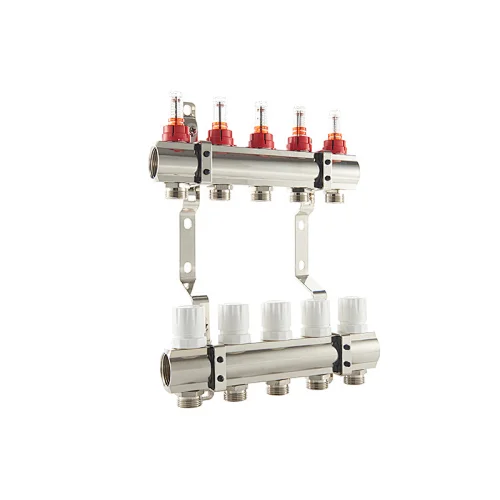

Model NO. H2004

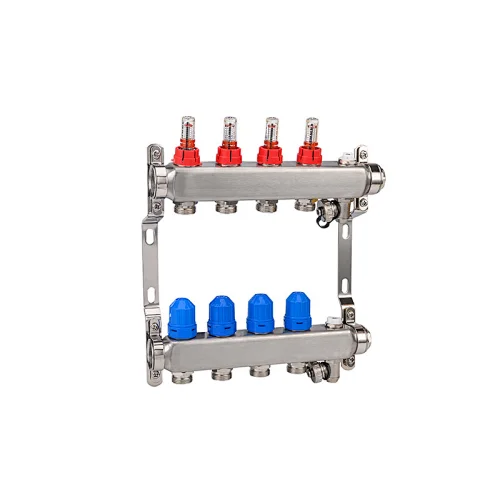

Model NO. H2004A
Model NO. H2005

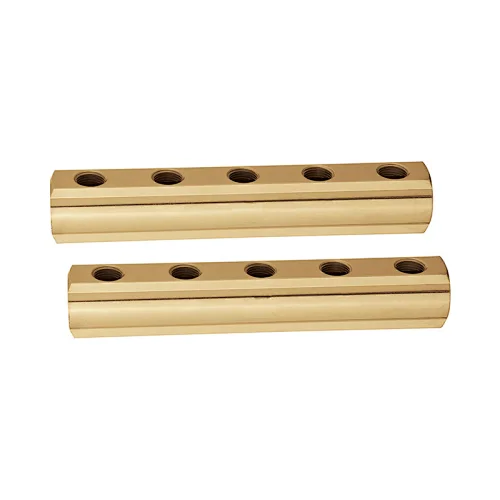

Model NO. H2006‚holes in two side
