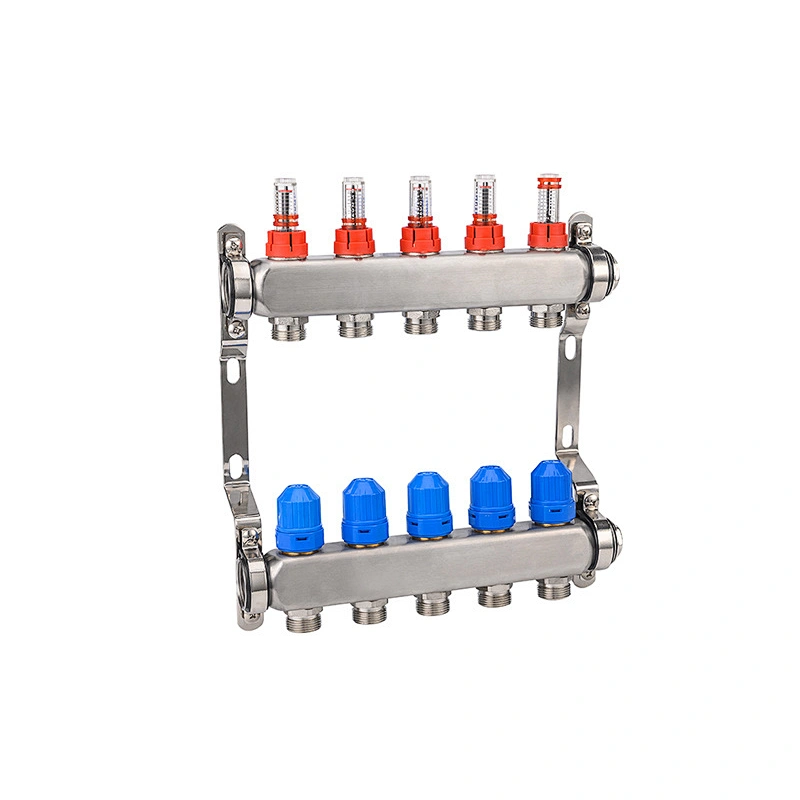

This manifold is designed for wet underfloor heating applications specifically. The manifold can help you to set different temperatures in different rooms to make your home feel better.
Port connection Material：Brass
Seal Material：EPDM
Maximum pressure：10bar
Flow meter scale：1~5L/Min
Flow tolerance: +-10%
Pipe threading：1’’
Center distance：50mm
Actuator connection Size：М30х1.5
Specification（mm/in）:
Features:
Manifold body Material：Stainless steel 304Port connection Material：Brass
Seal Material：EPDM
Maximum pressure：10bar
Flow meter scale：1~5L/Min
Flow tolerance: +-10%
Pipe threading：1’’
Center distance：50mm
Actuator connection Size：М30х1.5

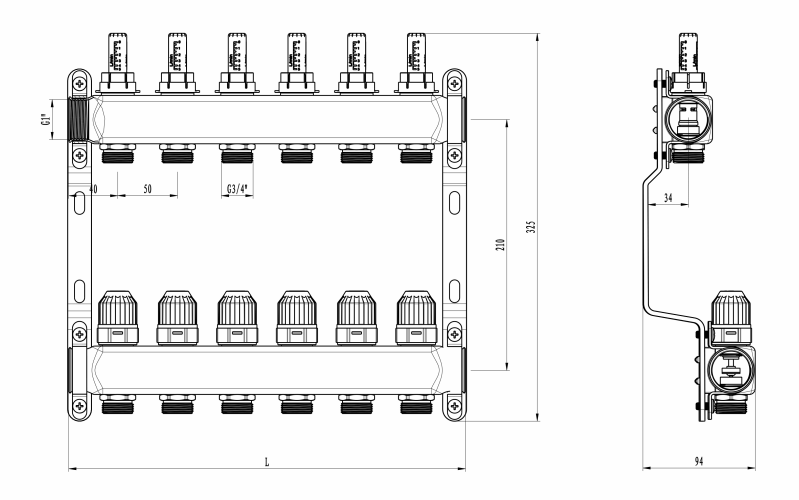

Specification（mm/in）:
| Specification | Loops | L |
| G1''X3/4'' | 2 | 130 |
| G1''X3/4'' | 3 | 180 |
| G1''X3/4'' | 4 | 230 |
| G1''X3/4'' | 5 | 280 |
| G1''X3/4'' | 6 | 330 |
| G1''X3/4'' | 7 | 380 |
| G1''X3/4'' | 8 | 430 |
| G1''X3/4'' | 9 | 480 |
| G1''X3/4'' | 10 | 530 |
| G1''X3/4'' | 11 | 580 |
| G1''X3/4'' | 12 | 630 |
